protected void handleProcessInstanceExecution(ExecutionEntity processInstanceExecution) {
        ExecutionEntityManager executionEntityManager = commandContext.getExecutionEntityManager();

        String processInstanceId = processInstanceExecution.getId(); // No parent execution == process instance id
        logger.debug("No parent execution found. Verifying if process instance {} can be stopped.", processInstanceId);
		// 找父实例
        ExecutionEntity superExecution = processInstanceExecution.getSuperExecution();
        SubProcessActivityBehavior subProcessActivityBehavior = null;

        // copy variables before destroying the ended sub process instance (call activity)
		// 在销毁结束的子流程实例（调用活动）之前复制变量
        if (superExecution != null) {
			// 存在父执行
            FlowNode superExecutionElement = (FlowNode) superExecution.getCurrentFlowElement();
            subProcessActivityBehavior = (SubProcessActivityBehavior) superExecutionElement.getBehavior();
            try {
				//保存内嵌子流程的变量到库和执行实例execution
                subProcessActivityBehavior.completing(superExecution, processInstanceExecution);
            } catch (RuntimeException e) {
                logger.error("Error while completing sub process of execution {}", processInstanceExecution, e);
                throw e;
            } catch (Exception e) {
                logger.error("Error while completing sub process of execution {}", processInstanceExecution, e);
                throw new ActivitiException("Error while completing sub process of execution " + processInstanceExecution, e);
            }
        }
		//获取当前存活的子执行数量
        int activeExecutions = getNumberOfActiveChildExecutionsForProcessInstance(executionEntityManager, processInstanceId);
        if (activeExecutions == 0) {
            logger.debug("No active executions found. Ending process instance {} ", processInstanceId);

            // note the use of execution here vs processinstance execution for getting the flowelement
            //这里使用流程实例执行来获取流程元素（删除实例相关所有数据）
			executionEntityManager.deleteProcessInstanceExecutionEntity(processInstanceId,
                                                                        execution.getCurrentFlowElement() != null ? execution.getCurrentFlowElement().getId() : null,
                                                                        null, false, false);
        } else {
            logger.debug("Active executions found. Process instance {} will not be ended.", processInstanceId);
        }

        Process process = ProcessDefinitionUtil.getProcess(processInstanceExecution.getProcessDefinitionId());

        // Execute execution listeners for process end.
		// 执行结束监听器
        if (CollectionUtil.isNotEmpty(process.getExecutionListeners())) {
            executeExecutionListeners(process, processInstanceExecution, ExecutionListener.EVENTNAME_END);
        }

        // and trigger execution afterwards if doing a call activity
        if (superExecution != null) {
            superExecution.setSubProcessInstance(null);
            try {

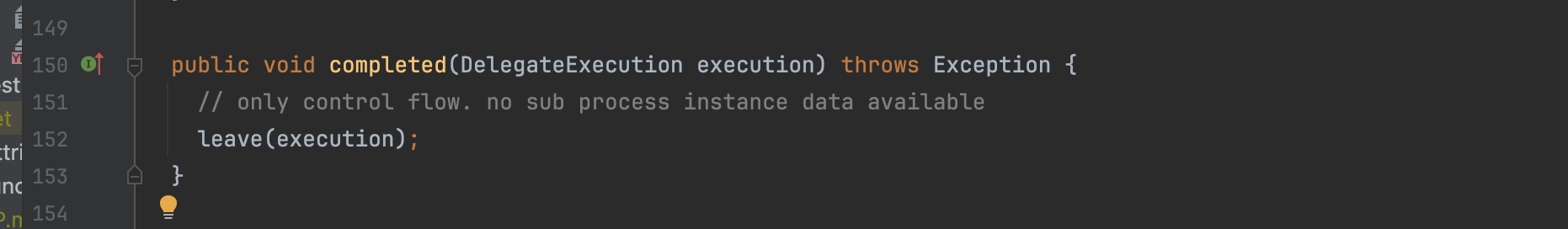

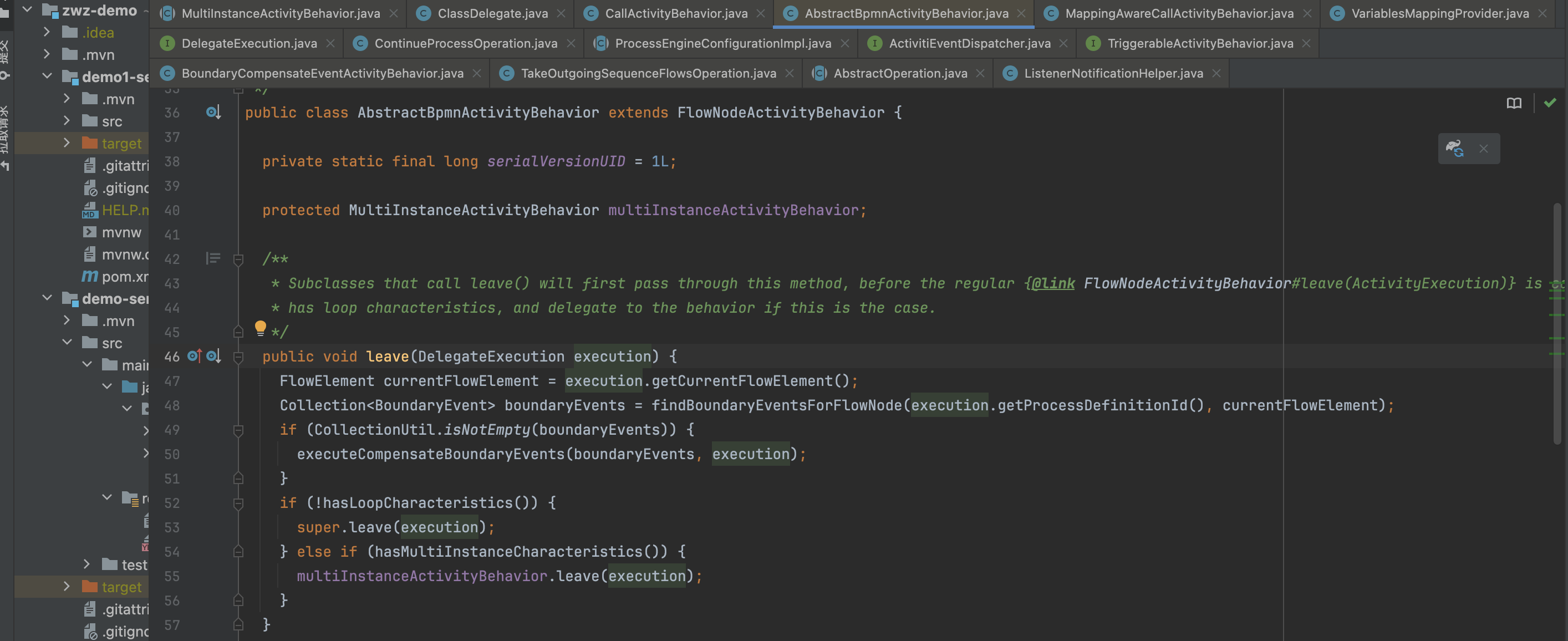

				// 行为操作最终调用leave离开
                subProcessActivityBehavior.completed(superExecution);
            } catch (RuntimeException e) {
                logger.error("Error while completing sub process of execution {}", rocessInstanceExecution, e);
                throw e;
            } catch (Exception e) {
                logger.error("Error while completing sub process of execution {}", processInstanceExecution, e);
                throw new ActivitiException("Error while completing sub process of execution " + processInstanceExecution, e);
            }
        }
    }

protected void handleRegularExecution() {
    ExecutionEntityManager executionEntityManager = commandContext.getExecutionEntityManager();
    // There will be a parent execution (or else we would be in the process instance handling method)
    ExecutionEntity parentExecution = executionEntityManager.findById(execution.getParentId());
    // If the execution is a scope, all the child executions must be deleted first.
	// 如果执行是父但非流程实例，则必须首先删除所有子执行。
    if (execution.isScope()) {
      executionEntityManager.deleteChildExecutions(execution, null, false);
    }
    // Delete current execution
    logger.debug("Ending execution {}", execution.getId());
    executionEntityManager.deleteExecutionAndRelatedData(execution, null, false);
    logger.debug("Parent execution found. Continuing process using execution {}", parentExecution.getId());
    // 需要特别注意: 在多实例子流程中结束执行时;
    // When ending an execution in a multi instance subprocess , special care is needed
    if (isEndEventInMultiInstanceSubprocess(execution)) {
		//处理多实例子流程
        handleMultiInstanceSubProcess(executionEntityManager, parentExecution);
        return;
    }
    SubProcess subProcess = execution.getCurrentFlowElement().getSubProcess();
    // 如果没有更多活动的子执行，则流程可以继续（例如嵌入式子流程仍有活动元素，我们无法继续）
    // If there are no more active child executions, the process can be continued
    // If not (eg an embedded subprocess still has active elements, we cannot continue)
    if (getNumberOfActiveChildExecutionsForExecution(executionEntityManager, parentExecution.getId()) == 0
        || isAllEventScopeExecutions(executionEntityManager, parentExecution)) {
      ExecutionEntity executionToContinue = null;
      if (subProcess != null) {
        // In case of ending a subprocess: go up in the scopes and continue via the parent scope
        // unless its a compensation, then we don't need to do anything and can just end it
        // 在结束子流程的情况下：进入范围并通过父范围继续，除非它是补偿，那么我们不需要做任何事情，可以结束它
		if (subProcess.isForCompensation()) {
          Context.getAgenda().planEndExecutionOperation(parentExecution);
        } else {
          //处理子流程结束
          executionToContinue = handleSubProcessEnd(executionEntityManager, parentExecution, subProcess);
        }
      } else {
        // In the 'regular' case (not being in a subprocess), we use the parent execution to
        // continue process instance execution
        // 处理规则执行end
        executionToContinue = handleRegularExecutionEnd(executionEntityManager, parentExecution);
      }
      if (executionToContinue != null) {
        // only continue with outgoing sequence flows if the execution is
        // not the process instance root execution (otherwise the process instance is finished)
		// 如果执行不是流程实例根执行，则仅继续传出序列流（否则流程实例已完成）
        if (executionToContinue.isProcessInstanceType()) {
		  //流程实例类型
          handleProcessInstanceExecution(executionToContinue);
        } else {
          Context.getAgenda().planTakeOutgoingSequenceFlowsOperation(executionToContinue, true);
        }
      }
    }
  }
